Scan with GS1 UDI Barcodes Setups

GoldFinch Scan Receive can be configured to scan GS1 UDI Barcodes for companies that are in the medical device industry.

GS1 UDI Barcode

Sample Barcode

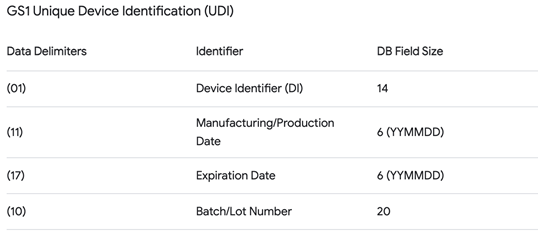

Data Delimiters and Identifiers

Sample Barcode Raw Data

01008600081187071123111610c2460252z17241116

Enable GS1 UDI Barcode Scan

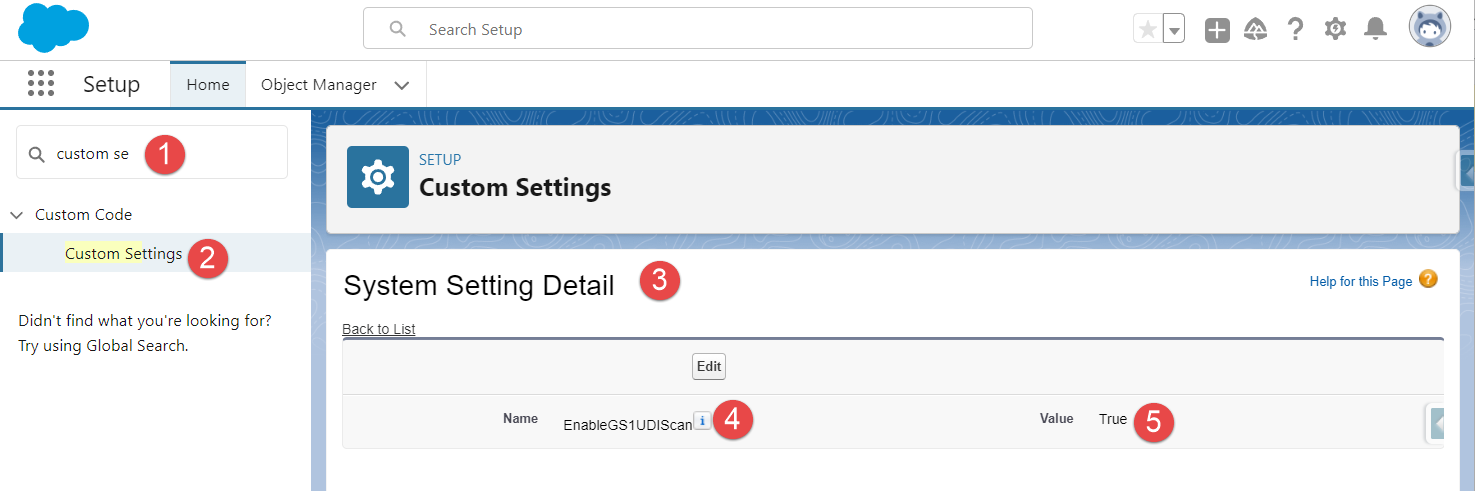

Navigate to Custom Settings\System Settings.

Then, create a new parameter: EnableGS1UDIScan with the Value = True.

Item Setup

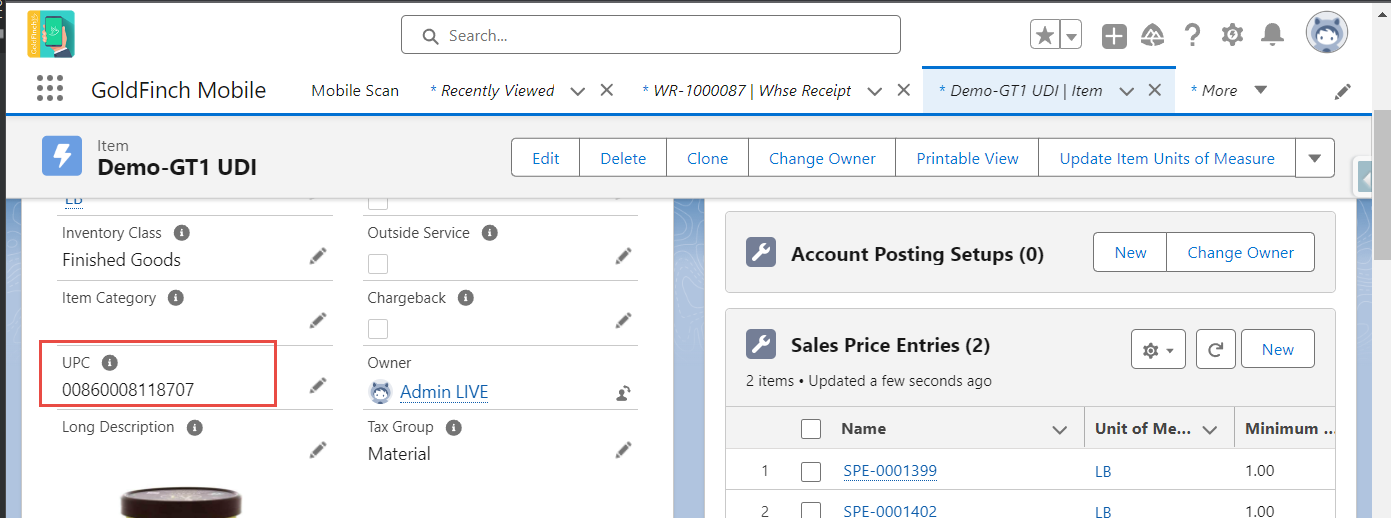

Enter the 14-digit Device ID code in the UPC field on the Item page.
